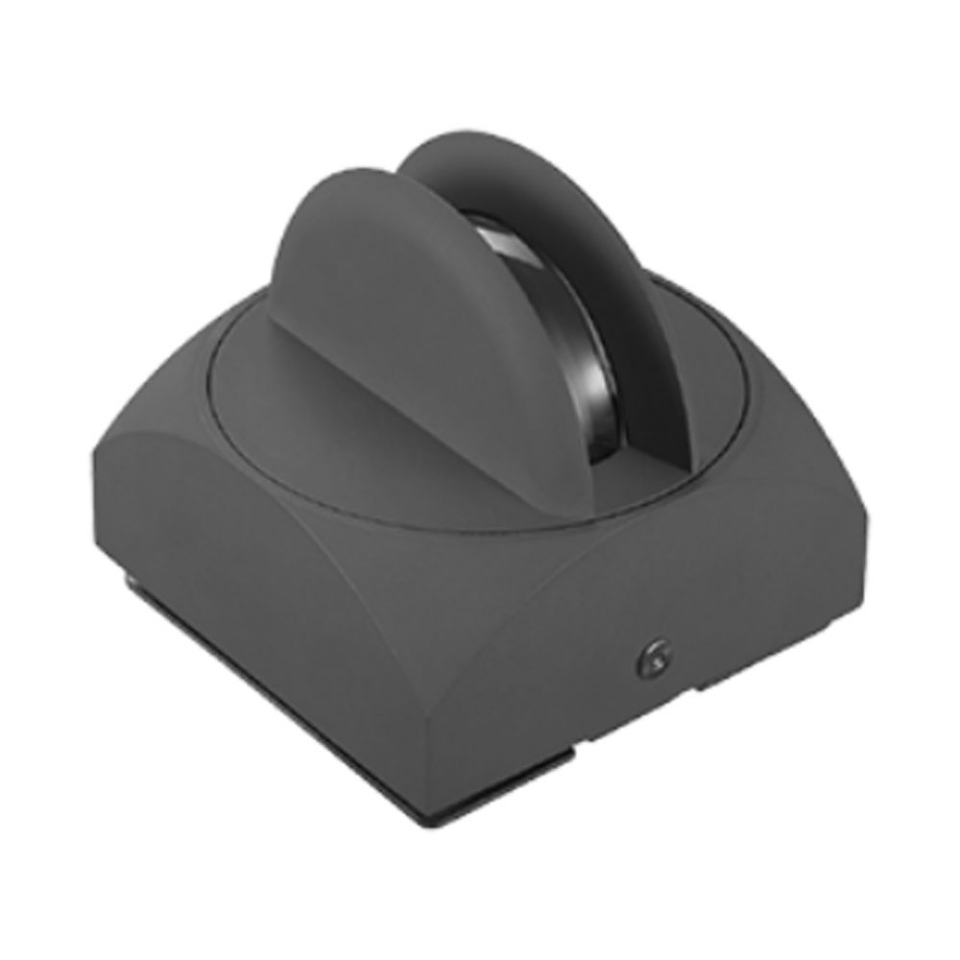

Window Light 8W

  • Range :
    Window Lights
  • Code :
    JQL-BLK-WNDL008W
  • Description :
    • Luminous Flux 160 lm @4000K
    • Power Consumption 8W
    • Beam Angle (50%Imax) 3*170°
    • Color Temperature 2700K / 3000K / 4000K / 5000K / 5700K / 6500K
    • LED Brand CREE/ NICHIA/ OSRAM/ LUMILEDS
    • Input Voltage DC24V
    • Protection Class IEC III
    • Control DMX / RDM / ON-OFF
    • Pixel 8
    • Finish Powder coating / Anode oxidation Housing Extruded aluminum 6063
    • Cover PMMA
    • IP Rating IP66
    • IK Rating IK06
    • Mounting Adjustable bracket
    • Operating Temperature -35°C ~ 60°C (-31°F ~ 140°F)
    • Storage Temperature -40°C ~ 70°C (-40°F ~ 158°F)
    • Lifespan >50,000Hrs (Ta=35°C@L70)
    • Certificate CE/RoHS/EMC
