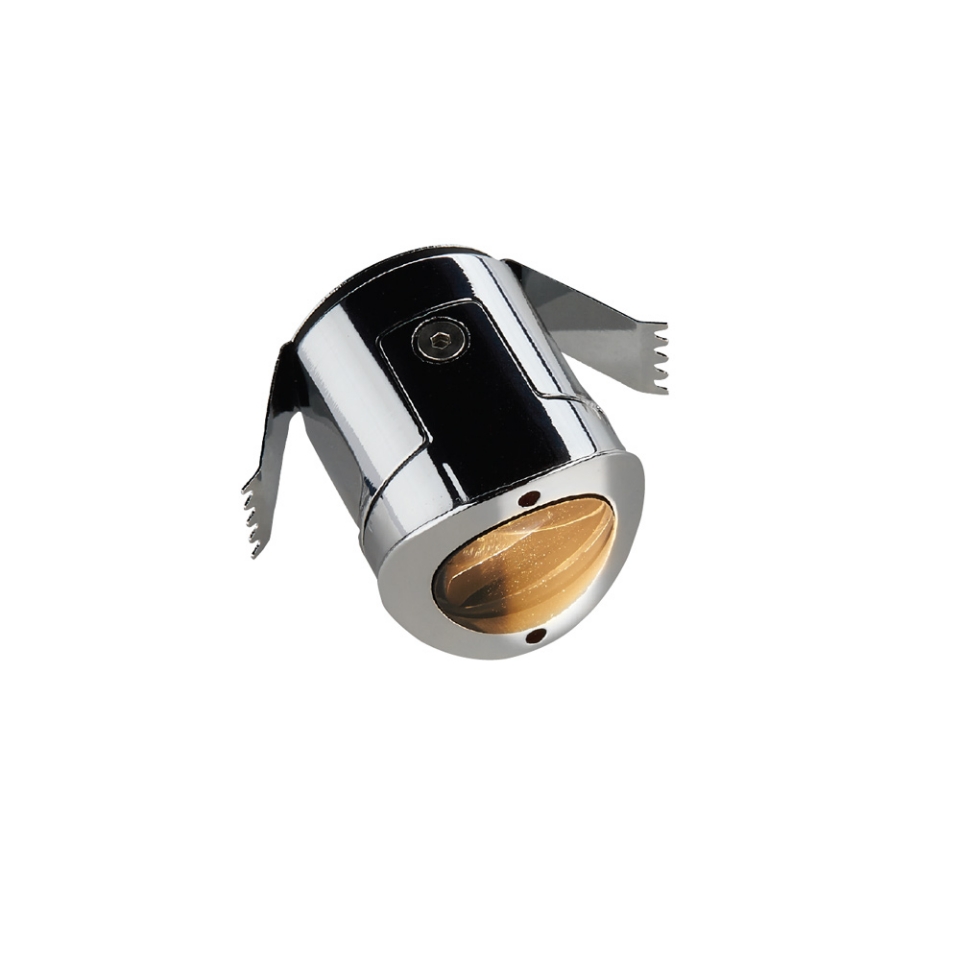

Guardrail Light

Description :

Luminous Flux 150 lm @4000K
Power Consumption 2W
Beam Angle (50%Imax) 50*80°
Color Temperature 2700K / 3000K / 4000K / 5000K / 5700K / 6500K
LED Brand CREE/ NICHIA/ OSRAM/ LUMILEDS
Input Voltage DC24V
Protection Class IEC III / I
Control DMX / DALI / Remote / ON-OFF
Power Factor ≥0.95
Finish Anti-corrosion treatment and high-temperature spraying Housing Die-cast aluminium ADC12
Cover PC
Dimensions Ø32 / W52mm/ W30mm / H37.6mm
IP Rating IP66
IK Rating IK08
Mounting Recessed
Operating Temperature -35°C ~ 60°C (-31°F ~ 140°F)
Storage Temperature -40°C ~ 70°C (-40°F ~ 158°F)
THD <10%
Lifespan >50,000Hrs (Ta=35°C@L70)
Certificate BIS / CE / RoHS

Disclaimer:

Jaquar reserves the right at its sole discretion, to change/modify/alter any product specification at any time without notice, where improvement can be effected in design, development and dimensions.
Although the information shown in this catalogue is updated to the extent possible but the same may vary. It is advisable to consult our local representative or check in a period manner for latest technical and other updates.
The prices are subject to change without notice and those ruling at the time of supply will be charged.
Colours & sizes of product images shown in the Website may vary in reality
